Axial self-guiding

Axial self-guiding

Bellows protected inside and out; compact self-guiding design.

DN 20–50PN 10 bar

Ask about this product

Configure & add to quote

Nominal diameter (DN)(mm) *Working temp. min(°C)Working temp. max(°C)Flow mediumFlow velocity(m/s)Axial movement (±)(mm)MaterialEnd connection

Quantity

Specifications

Range

Nominal diameter: DN 20–50 mm
Nominal pressure: PN 10 bar

Standards

PED 2014/68/EU

Materials

1.45411.44011.45711.43011.4580

Technical reference

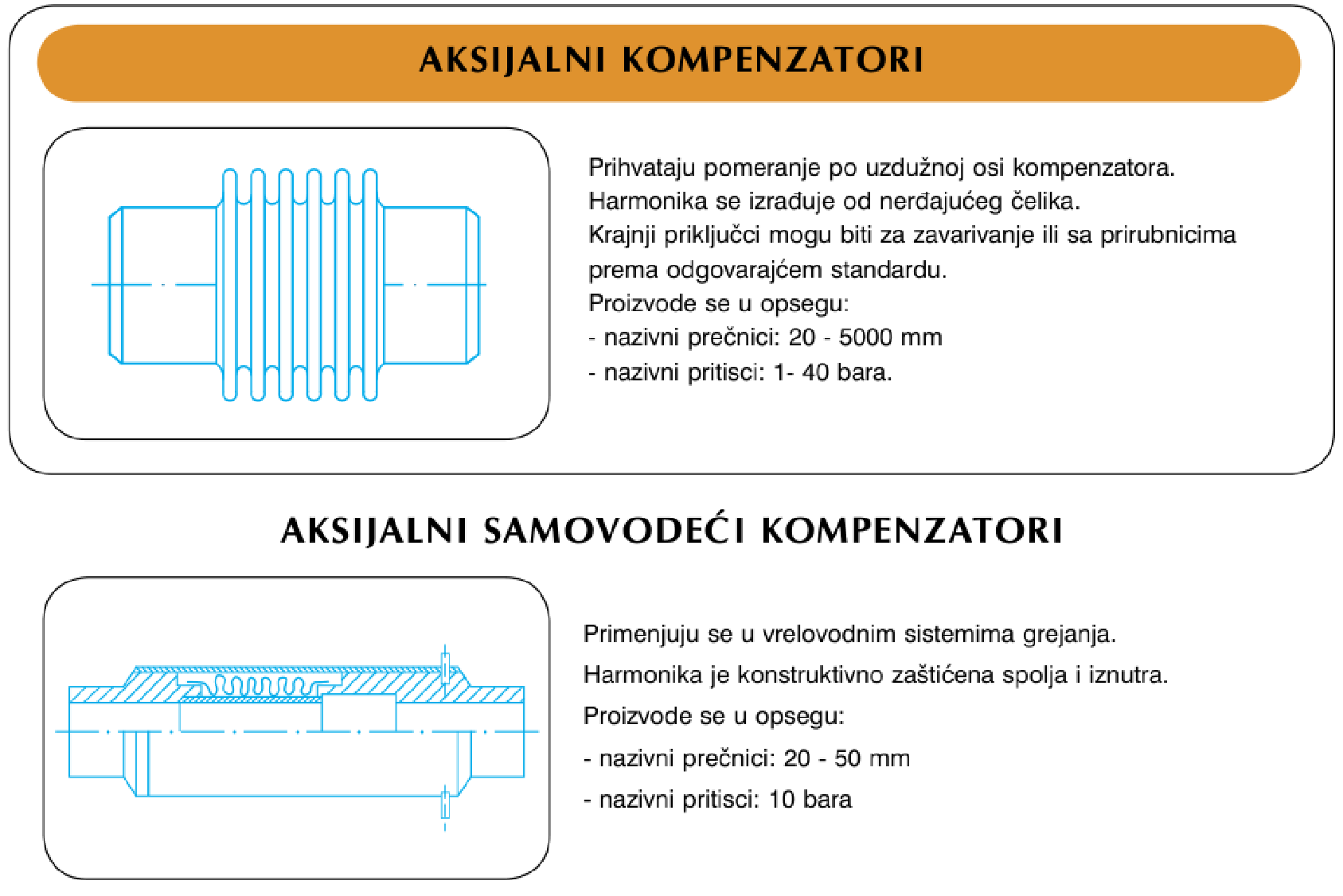

Axial self-guiding, standard program (DN 20–50, PN 10 bar)

Expansion joints — types, manufacture, testing and documentation

Materials cross-reference (JUS · DIN · EN · ASTM)
