Axial external-pressure

Pressure acts on the bellows externally, allowing large travel at higher pressures.

DN 80–600PN 10–25 bar

Configure & add to quote

Nominal diameter (DN)(mm) *Pressure (PN)(bar) *Working temp. min(°C)Working temp. max(°C)Flow mediumFlow velocity(m/s)Axial movement (±)(mm)MaterialEnd connection

Quantity

Specifications

Range

Nominal diameter: DN 80–600 mm
Nominal pressure: PN 10–25 bar

Standards

PED 2014/68/EU

Materials

1.45411.44011.45711.43011.4580

Technical reference

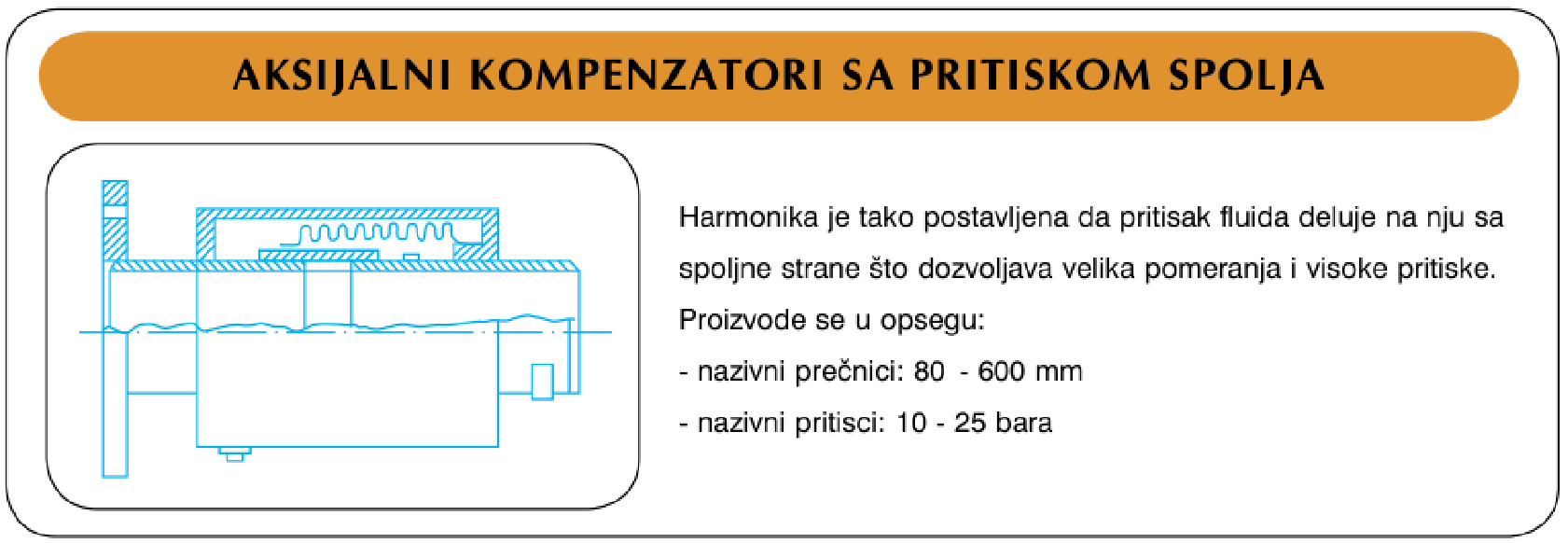

Axial external-pressure, standard program (DN 80–600, PN 10–25 bar)

Expansion joints — types, manufacture, testing and documentation

Materials cross-reference (JUS · DIN · EN · ASTM)
