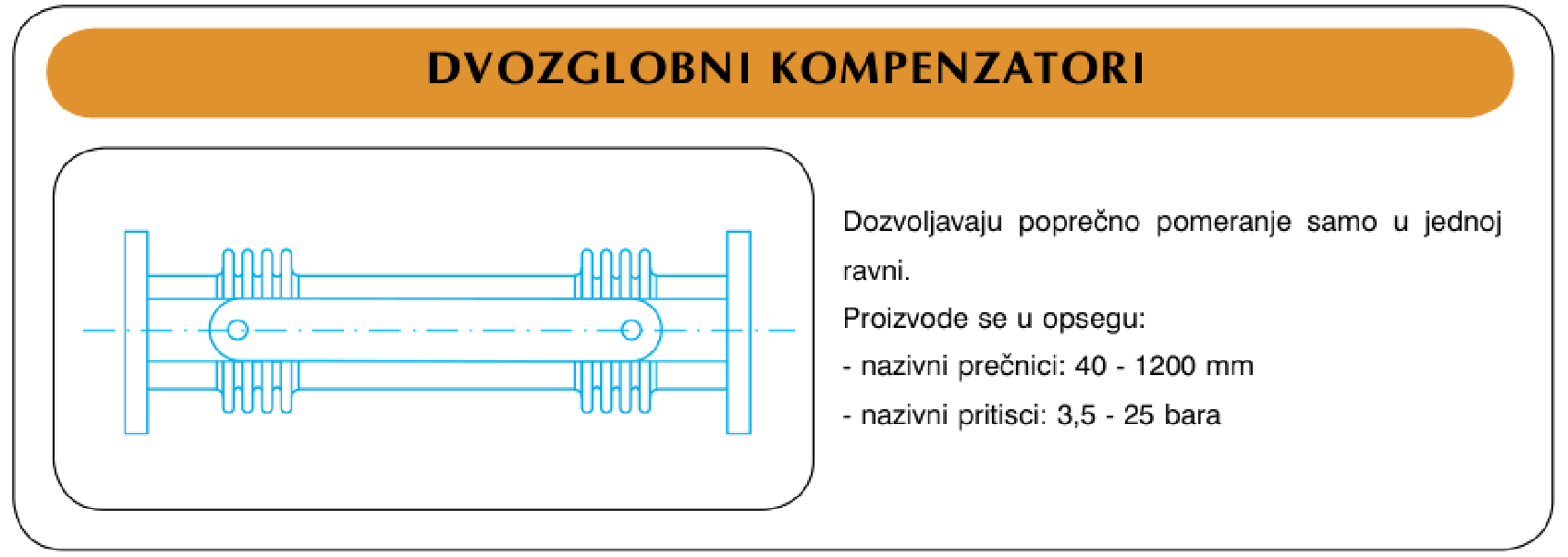

Double-hinged

Allows lateral movement in a single plane.

DN 40–1200PN 3.5–25 bar

Configure & add to quote

Nominal diameter (DN)(mm) *Pressure (PN)(bar) *Working temp. min(°C)Working temp. max(°C)Flow mediumFlow velocity(m/s)Lateral movement (±)(mm)MaterialEnd connection

Quantity

Specifications

Range

Nominal diameter: DN 40–1200 mm
Nominal pressure: PN 3.5–25 bar

Standards

PED 97/23/EC

Materials

1.45411.44011.45711.43011.4580
