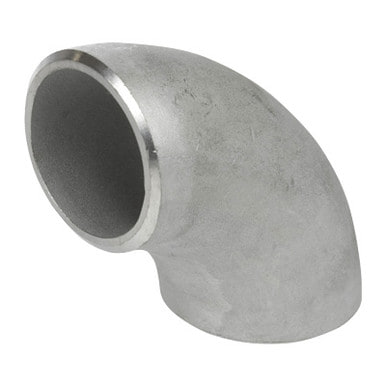

90° pipe bend
Changes pipeline direction by 90°. Multiple radii and standards.
Ø21.3–711 mmR=1d–5d
Configure & add to quote
Quantity
Specifications
Range
- Outside diameter
- Ø21.3–711 mm

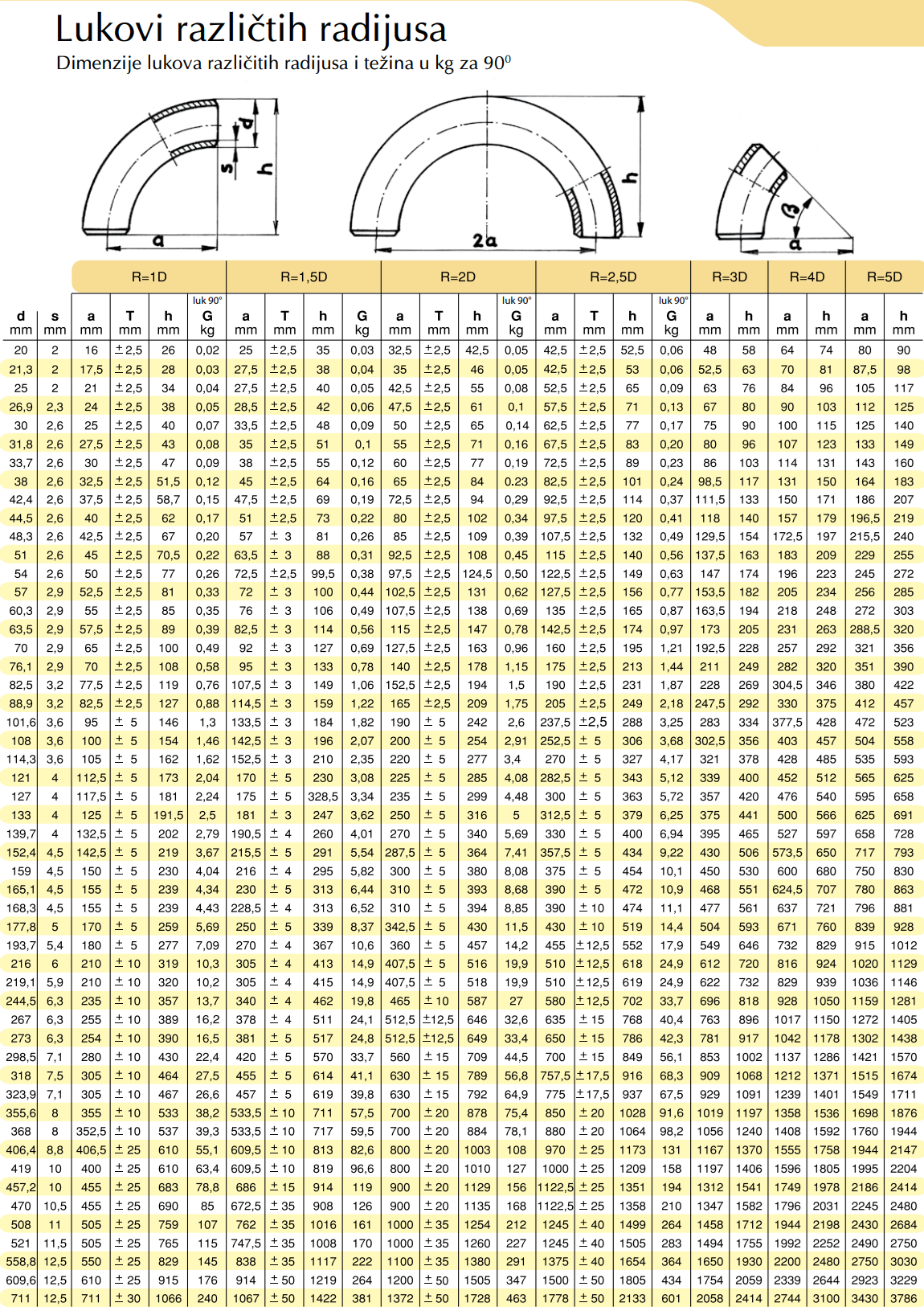

- Bend radius
- R = 1d – 20d
Standards

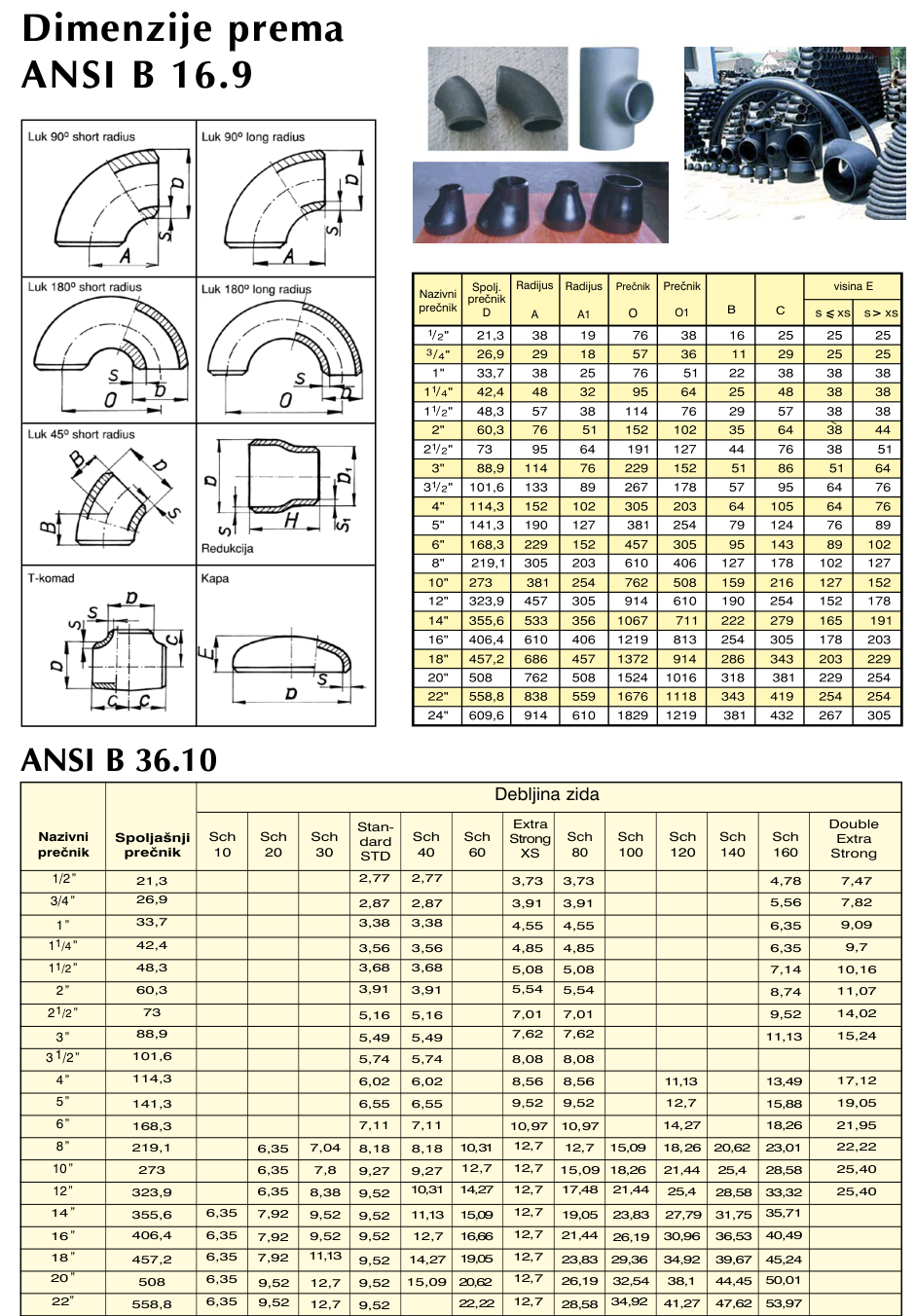

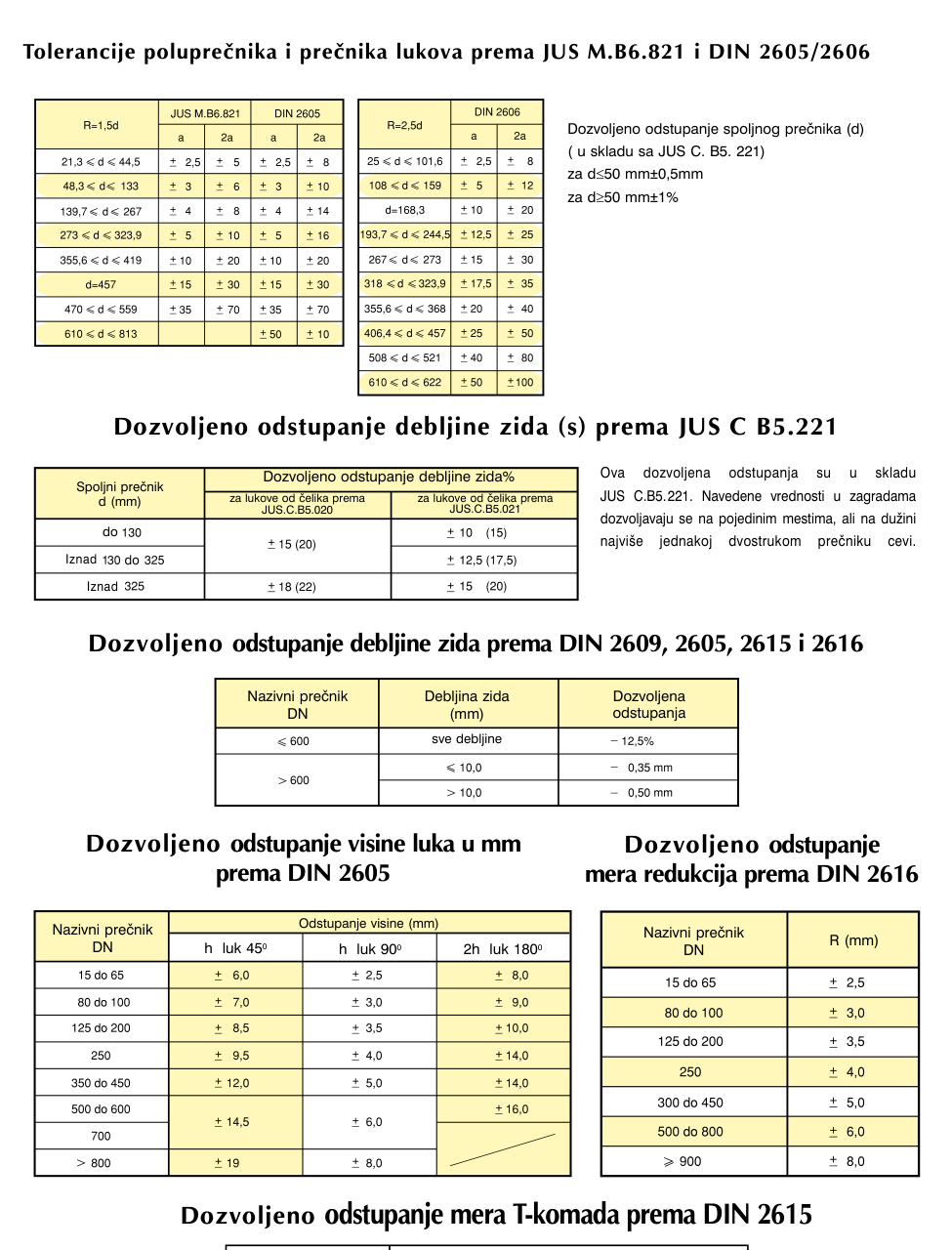

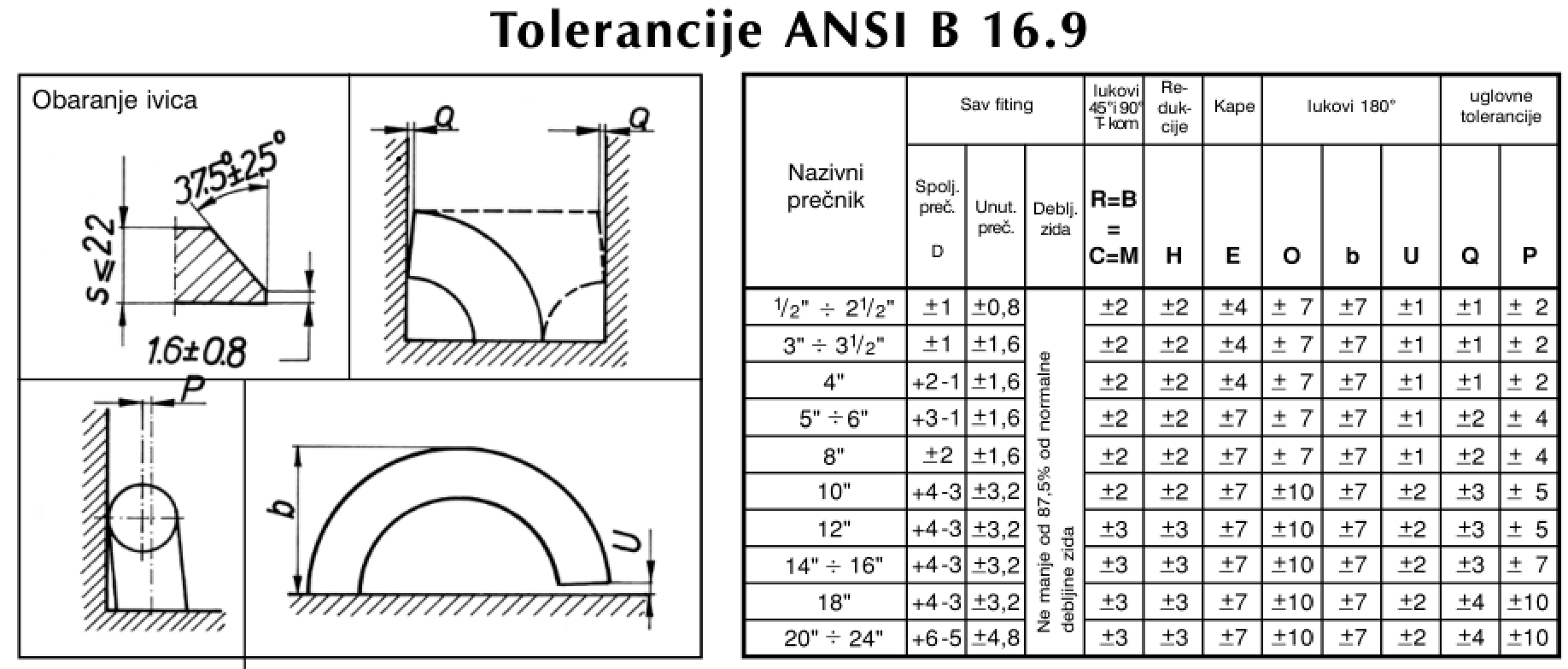

JUS M.B6.821DIN 2605ANSI B16.9ISO 3419
Materials
P235GHP255GH16Mo313CrMo4-510CrMo9-101.45411.44011.45711.43011.4580
