Reducer

Reducer

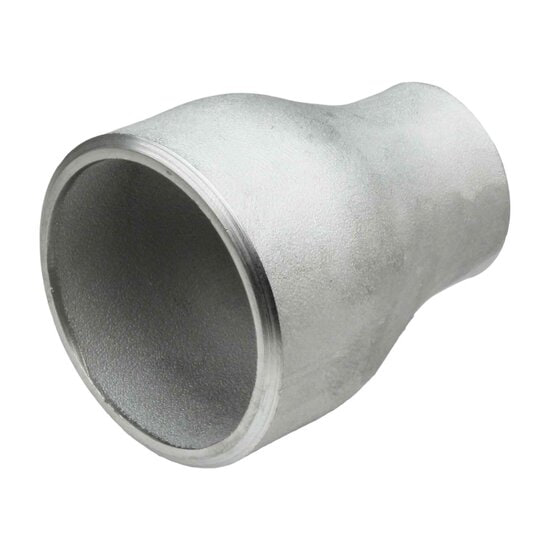

Joins two pipe sizes, concentric (common axis) or eccentric (offset axis).

Ø21.3–609.6 mm
Ask about this product

Configure & add to quote

Quantity

Specifications

Range

Outside diameter
Ø21.3–609.6 mm

Standards

DIN 2616ANSI B16.9GOST 17378

Materials

P235GHP255GH16Mo313CrMo4-510CrMo9-10

Technical reference

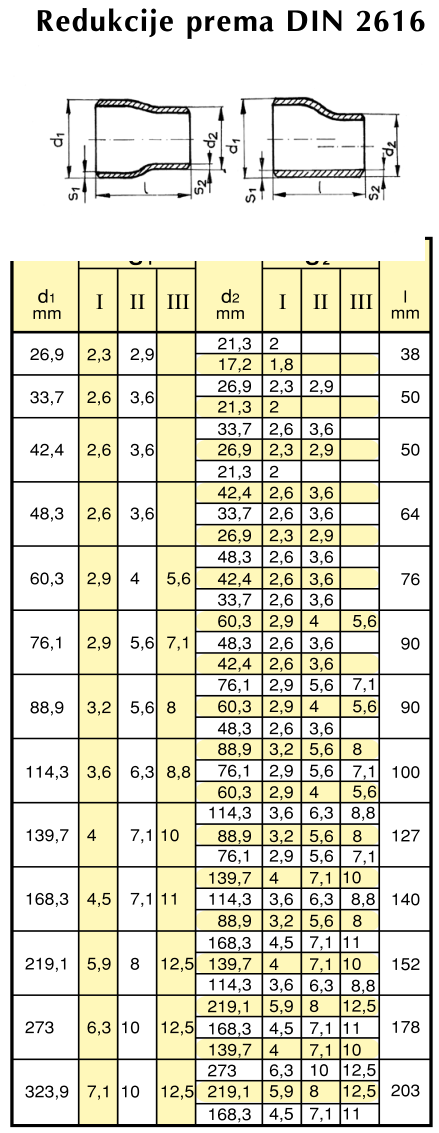

Reducer dimensions, DIN 2616 (concentric & eccentric)

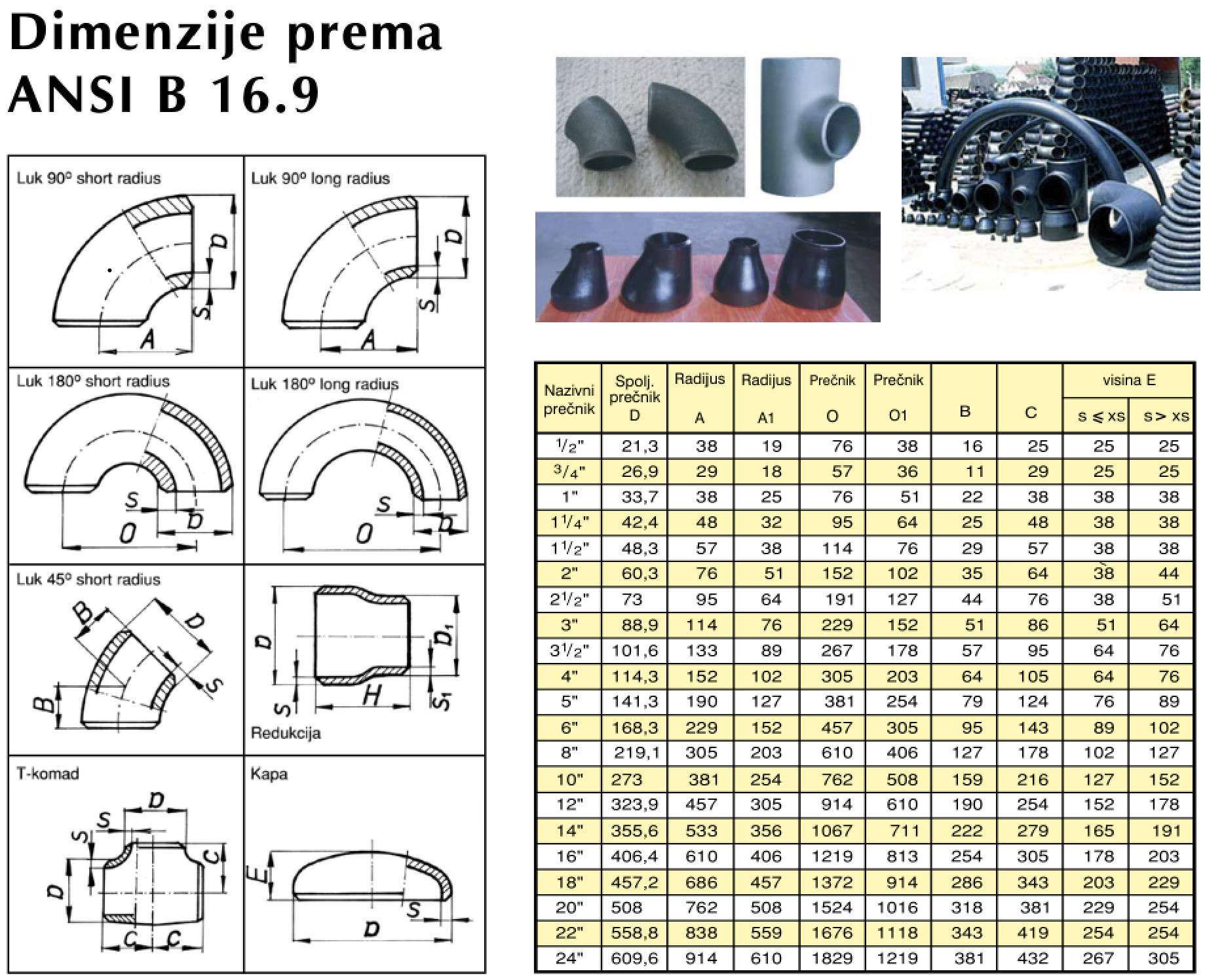

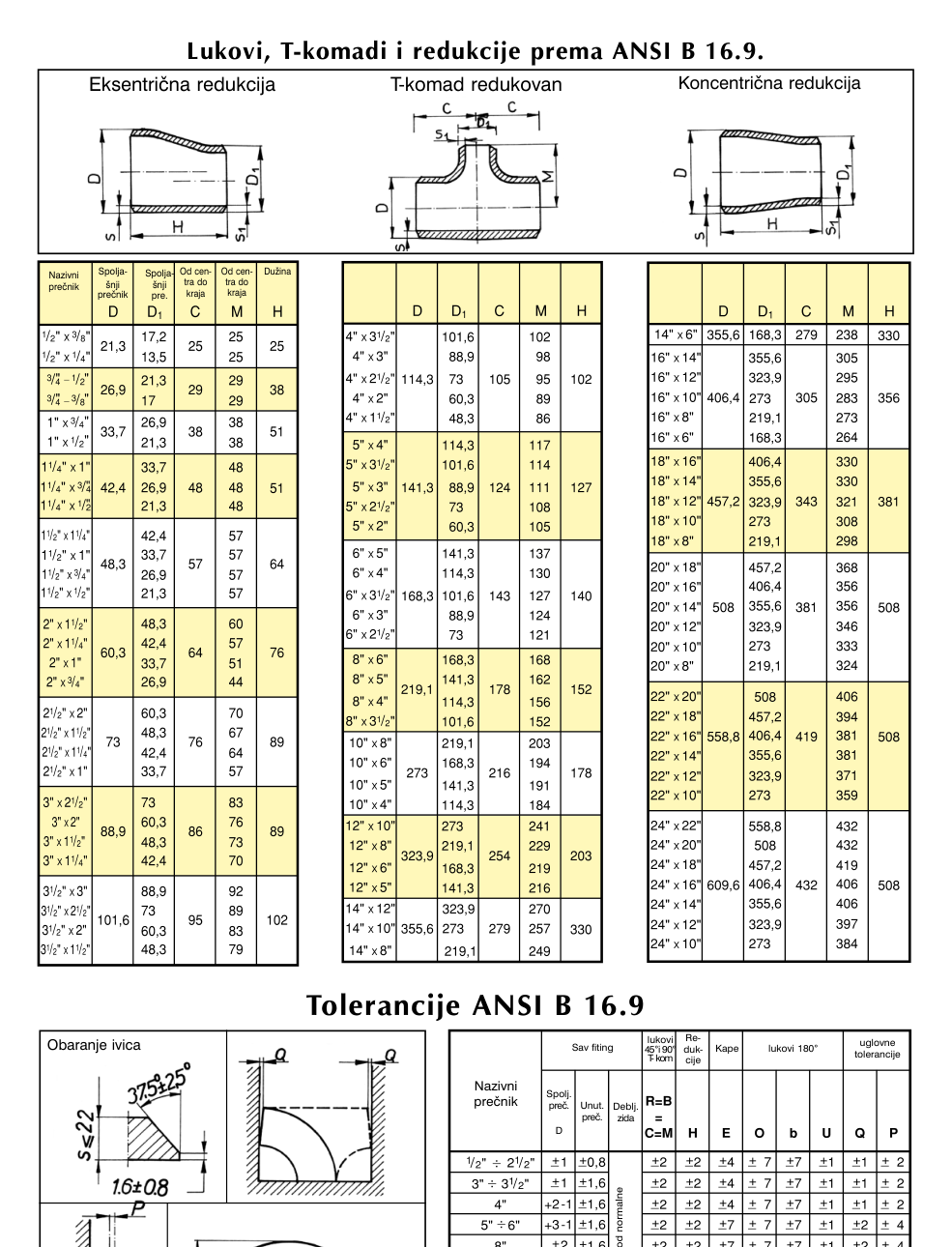

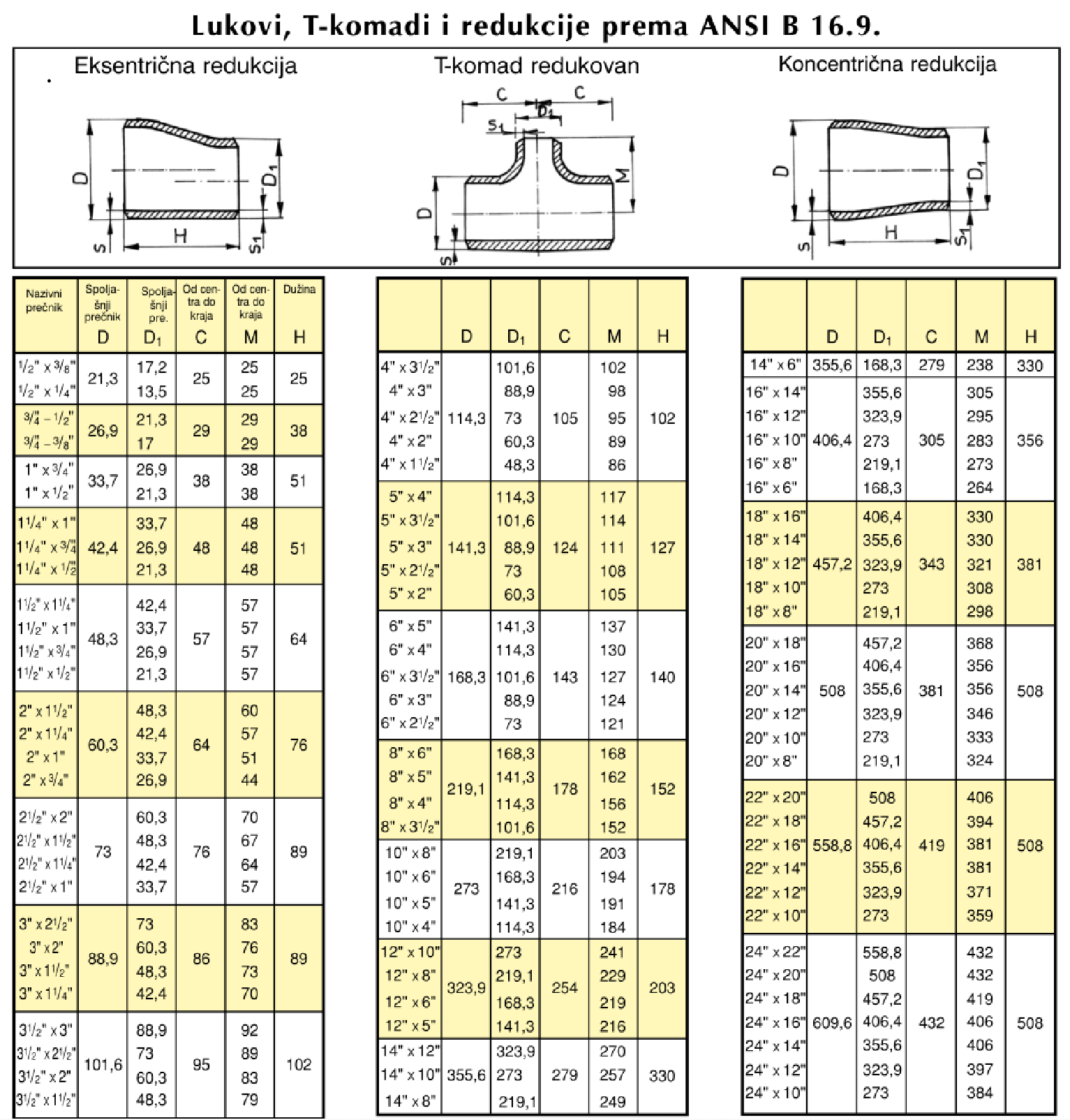

Reducer & tee dimensions, ANSI B16.9 + tolerances

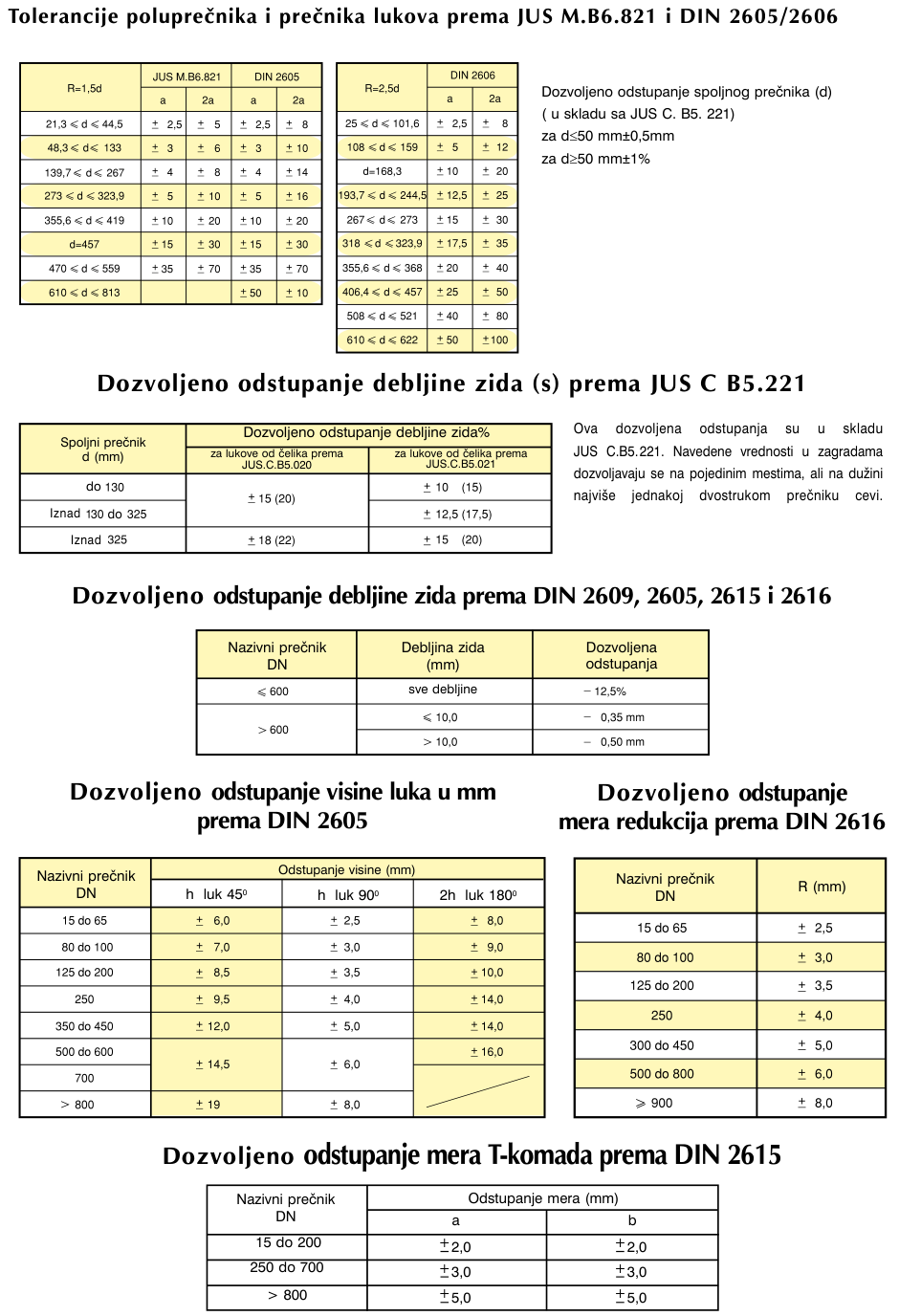

Permitted tolerances, radius, diameter & wall (JUS / DIN 2605/2606/2609)
